Texa Konfort 760 Touch

The Standard AC Recharge Station Ideal Solution for Recharging R134a or R1234yf

Konfort 760 Touch at-a-glance

• • Management of dual refrigerants R134a and R1234yf
•
• • Suitable for both cars and trucks
•
• • Automatic detection of leaks
•
• • Measurement of refrigerant quantity using electronic scales
•
• • 10-inch touchscreen interface, compatible with KONFORT APP
•
• • Refrigerant quantity measurement with electronic scales
•
• • 20 kg tank for the Konfort 760 Touch
•
• • Charging precision of +/- 15 grams
•
• • Dual-stage vacuum pump and multilingual software
•
• • High-efficiency refrigerant recovery rate exceeding 95%
•
• • Automatic and precise oil injection
•

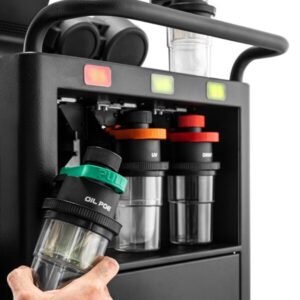

• • Automatic recognition of oil bottles
•
• • Operating modes include: Database, Personalized Service, My Database
•
• • Automatic adjustment for service hose length
•
• • FPS (Fan Protection System) for safety
•
• • Automatic handling of non-condensable substances

Texa Konfort 760 Touch

TECHNICAL SPECIFICATIONS

• • Compatible with R134a and R1234yf
•
  • Suitable for cars and trucks
•
  • Compatible with buses (only Konfort 760 Touch Bus)
•
  • Fully automated service management
•
  • Automatic leak detection feature
•
  • Refrigerant quantity measured using electronic scales
•
  • Air-tight oil bottle system to prevent contamination (patent pending)
•
  • Electronic scales for automatic oil management
•
  • Measurement of recovered oil quantity with electronic scales
•
  • Compatible with hybrid vehicles
•
  • Automatic service management (DATABASE)
•
  • Tailored service management options
•
  • FPS (Fan Protection System) for safety
•
  • Oil change flushing system
•
  • Service completion printouts via Wi-Fi
•
  • 10-inch touchscreen interface
•
  • Works with KONFORT APP
•
  • 20 kg refrigerant tank for Konfort 760 Touch
•
  • 30 kg refrigerant tank for Konfort 760 Touch Bus
•
  • Charging accuracy of +/- 15 grams
•
  • High-efficiency refrigerant recovery rate (over 95%)
•
  • Two-stage vacuum pump
•
  • Automatic recognition of oil bottles (patent pending)
•
  • Scales locking mechanism
•
  • Operating modes: DATABASE, CUSTOMISED SERVICE, MY DATABASE
•
  • Multi-language software support
•
  • Automatic compensation for service hose length
•
  • Maintenance alerts for automatic upkeep
•
  • Simplified maintenance procedures
•
  • Automatic management of non-condensable gases
•
  • Remote assistance capabilities
•
  • High-precision automatic oil injection
•
  • Automatic software updates

OPTIONAL:

• • Refrigerant identification kit
• • Thermal printing device
• • Flushing equipment
• • A/C system performance kit
• • Leak detection kit using Forming Gas
•

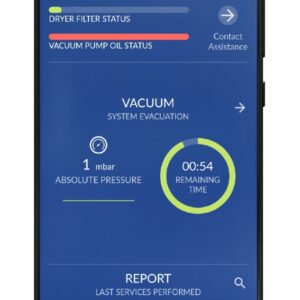

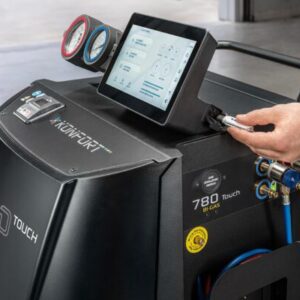

The KONFORT 760 TOUCH charging stations come with a 7-inch color multi-touch screen that enhances usability and provides a clear overview of the tasks at hand. Additionally, the cutting-edge graphic interface is designed for an intuitive software experience, facilitating quick data interpretation. The high resolution and brightness of the display further aid in data visibility. Another notable feature is the option for the operator to select either a light or dark background theme. The display on the KONFORT TOUCH stations also incorporates glove-touch technology.

EASY-TO-USE AND USER-FRIENDLY INTERFACE

The interface is created to present all essential information on one screen, allowing users to quickly access the most important functions. You will swiftly transition from the initial activation stages to performing the service.

The menu is user-friendly and takes full advantage of the large display, reducing the number of steps needed to initiate a charging service. Additionally, the "Smart selection by model" search feature enables you to locate the vehicle you are servicing by entering one or more keywords.

CERTIFIED FOR PRODUCTION AND QUALITY

The KONFORT TOUCH series has been enhanced through advancements in materials, technologies, and automated manufacturing processes, leading TEXA to achieve ISO TS 16949 certification.

AUTOMATED LEAK MONITORING SYSTEM

The KONFORT 700 series charging stations perform an automatic double check for any potential gas leaks from the tanks. All safety procedures are conducted automatically to minimize the risk of errors.

THE ANDROID OPERATING SYSTEM MAKES EVERYTHING SIMPLER.

The KONFORT TOUCH stations are engineered for optimal performance, aiming to greatly simplify maintenance and charging tasks. To accomplish this, they utilize the Android 10 embedded operating system, which enhances user experience by providing easy access to controls through an intuitive visual interface filled with infographics. Additionally, software updates are carried out automatically and securely.
