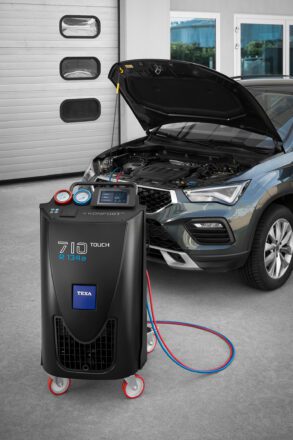

Texa Konfort 710 Touch

The Standard AC Recharge Station with Dual Stagre Vacuum Pump compatible with R134a

Texa Konfort 710 Touch at-a-glance

• • Works with R134a
• • 7-inch TFT IPS display with a resolution of 1024×600 and 400CD brightness
• • Database and service management via SD card
• • 10 kg capacity tank
• • Dual-stage vacuum pump
• • Charging precision of +/- 15 grams
• • Timed automatic oil injection
• • Two manual control valves for recharging lines
• • Software available in multiple languages
• • Automatic adjustment for the length of recharging lines
• • Automatic maintenance alert system
•

Texa Konfort 710 Touch

Technical Specifications

Display: 7” TFT IPS 1024×600 400CD
GPU: Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing
Touch: Capacitive touch panel, USB/12C interface
CPU:
SC200R Series Snapdragon QCM2150 Quad-core
ARM Cortex-A53 64-bit CPU @ 1.3 Ghz
STM32F103 – ARM Cortex M3 32-bit CPU

RAM: 2 GB LPDDR3
Hard disk: 16 GB eMMC
Operating system: Android 10.0
Audio peripheral: devices 1 speaker CES-703116-28PM 8ohm 2W
Wi-Fi:
802.11a/b/g/n, 150 Mbps, STA/AP/P2P
2402-2480 MHz
5 Ghz

Bluetooth:
2.1+EDR/3.0/4.1 LE/4.2 BLE
2400-2483,5 MHz

RF power: 20 dBm
I/O peripheral: devices USB 2.0 x1
Primary battery: 3 V CR2032
Secondary battery: NiMh 2,4 V – 600 mAh

Fluid / Group:
R134a / 2
R456a / 1

Electronic refrigerant scale (Precision) [g]: ± 10
Electronic oil and UV tracer scales (Resolution) [g]: —

Pressure transducer: Kl. 1.0
High pressure gauge [mm]: Ø 80
Low pressure gauge [mm]: Ø 80
Tank capacity [kg]: 20
Service pipes’ length [m]: 3

Filter assembly: 1 combined filter + mechanical filter
Compressor (airtight) [cc]: 12
Vacuum pump: 100 l/m, double stage, final pressure 0,03 mbar
Ambient temperature sensor (Resolution) [°C]: 1

Refrigerant purity [kg]: 150 (SAE J2099)
Recovery efficiency: > 95 % (SAE J2788 / SAE J2843)
Maximum operating pressure (PS) [bar]: 20
Safety device calibration [bar]: 20
Power supply voltage [V]: 230

Frequency (Hz): 50
Power [W]: 770
Operation temperature (TS) [°C]: 5 ÷ 40
Storing temperature [°C]: – 25 ÷ 60

Dimensions [mm]:
H: 1101
L: 598
P: 706

Weight [kg]: 90

A variety of accessories to enhance functionality

The KONFORT TOUCH models can be paired with various optional accessories that enhance their capabilities and features, including:

CLIMATE CONTROL OPTIMIZATION PACKAGE

The latest KONFORT service station models come with an optional climate control efficiency kit module that enables the measurement of ambient and vent temperatures. After conducting the test, the KONFORT unit generates a comprehensive performance report.

Gas formation kit

It enables the rapid and effective resolution of leak detection issues in A/C systems that utilize refrigerants R134a and R1234yf.

Employing the kit is a tactical approach, as it accurately detects even the tiniest gas leaks.

This effectiveness is attributed to the molecular size of the Forming Gas, which is significantly smaller than that of any refrigerant.

REC+

It ensures the secure removal of refrigerant, regardless of its type. It meets the technical, performance, and safety standards set by leading vehicle manufacturers and enables the recovery of up to 95% of the refrigerant from the system. Once the recovery process is complete, the contaminated refrigerant can be collected in a tank for disposal.

Refrigerant identification kit

This device quickly determines whether the vehicle uses R134a or R1234yf refrigerant and assesses its purity. The whole process takes about a minute. If the refrigerant is deemed inappropriate or contaminated, the station alerts the technician and halts the operation.

Thermal printer

You can set up a highly beneficial thermal printer that allows you to produce an accurate report of all completed operations at any time.

Automobile flushing system

Flushing is a mechanical process used to clean the components of a vehicle's air conditioning system. This process involves a 6-liter capacity tank equipped with a contamination indicator, a stainless steel filter that can be easily removed for cleaning, 5mm diameter flushing hoses, and a universal adapter case.
