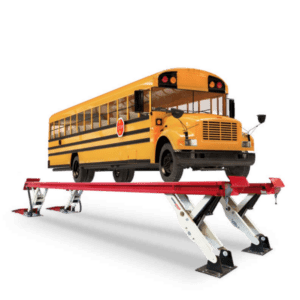

Stertil Koni SkyLift

The platform lifts with complete freedom of movement.

• The Stertil-Koni SKYLIFT is a fully hydraulic platform lift that features a "clear floor concept," allowing for a completely vertical lift without any horizontal displacement. It is a space-efficient, high-capacity vehicle platform lift, especially when compared to traditional parallelogram or other types of platform lifts.
•
• • Available in various platform lengths ranging from 23 to 48 feet, or up to 100 feet when used in tandem.
•
• • Platform spacing width can be customized by the customer during installation.
•

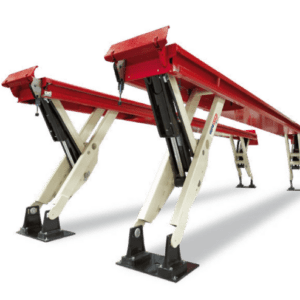

• • Unique Y-shaped smart design construction.
•
• • Horizontal forces on the floor anchors are only present during vehicle acceleration and deceleration, resulting in fewer anchors needed for lift installation.
•
• • The workshop floor remains free of obstacles like base frames or other support structures, thanks to independent mechanical locking.
•
• • Features a microprocessor-controlled synchronization system.
•

• Stertil Koni – SkyLift

Flush Mounted
Designed to be level with the floor for easy access, making it perfect for low-clearance city transit buses. It offers a lifting height of 69 inches thanks to its unique longer-leg design. There are no protruding obstacles on the workshop floor, and a robust galvanized recess cover plate system allows for easy movement of workshop equipment like toolboxes, transmission jacks, and axle stands.

Semi-Flush Mounted
This model features a shallow recess design, which helps reduce construction costs in existing buildings. It does not require a pit and allows for easy drive-on access for low-clearance vehicles such as buses or commercial vehicles with side skirts.

Surface Mounted
With a low drive-on height of just 13.75 inches, this option is ideal for existing workshop setups. It requires fewer floor anchors compared to traditional surface-mounted platform lifts and is easy to install without any additional construction. Standard versatile drive-on ramps are included for smooth access, accommodating all vehicle types.

Tandem Configuration
By using a special synchronization set and a bridging piece between two lifts, two SKYLIFT vehicle lifts can be utilized safely and efficiently as either a single long lift or as two separate lifts. The drive-on experience remains safe and smooth, similar to a single configuration, due to the minimal gap between the lifts.

•

• Features:

• • Recess cover plates for flush-mounted models
•
• • Reverse Roll-Off Protection System
•
• • Additional multi-purpose drive-on ramps for various vehicles
•
• • Optional platform length extensions can be added during or after installation
•
• • Synchronization kit for tandem setups
•
• • Remote control
•
• • Jacking beams
•
• • Compressed air kit
•
• • Two-speed lowering
•
• • LED lighting
•
• • Stertil® GuardTM Anti-Skid Coating
•
• • 49-inch platform extensions
•

• SPECIFICATIONS:

• - Lifting capacity – 62,400 lbs
• - Lifting height – 70 inches
• - Lifting time – 90 seconds
• - Lifting system – hydraulic
• - Available platform lengths – 23′, 26′, 30′, 33′
• - Motor capacity – 18 HP
