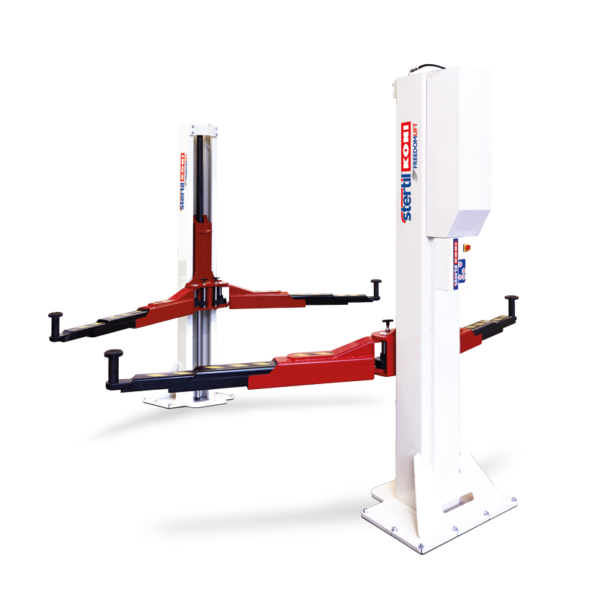

Stertil Koni Freedom Lift

Heavy duty 2-post lift

• The FREEDOMLIFT has improved stability and safety thanks to its innovative design, advanced construction, and smart technology. The 2-post lift and lifting arms are both sleek and robust. A variety of automatic features, both mechanical and hydraulic, provide optimal safety:
•
• • Intelligent synchronization through proportional control valves
•
• • An independent mechanical locking system that activates 8 inches above the floor
•
• • A gravity-engaged locking pawl
•
• • The locking system remains operational even when the lift is powered off
•
• • A locking profile with increments of just 1 3/8 inches
•
• • Automatic overload protection
•
• • Automatic arm locking
•
• • An ergonomic design free of sharp edges
•
• • Compact foot plates to reduce tripping hazards
•
• • An automatic limiter that activates when the highest position is reached
•
• • Hold-to-run buttons located on the control panel

Stertil Koni Freedom Lift

Ergonomic Control Panel:
The FREEDOMLIFT features a specially designed control panel that allows for comfortable operation and includes an integrated switch for optional LED lighting.

Reliable Electro-Hydraulic System:
The hydraulic cylinders are thoroughly tested and installed within the posts, ensuring they are fully protected from dirt and moisture.

Easy Installation:
The FREEDOMLIFT can be installed quickly and easily due to the low height of the posts and the efficient design of the base plates.

Innovative Sliding Block System:
This advanced sliding block system ensures optimal load distribution. It is highly reliable, extremely durable, and has been tested under maximum load for over 20,000 lifting cycles.

Flexible Design with Ample Working Space:
The robust 2-post FREEDOMLIFT is designed without thresholds and features a rigid top beam. The overhead aluminum tube (as shown in the diagram) is solely for protecting hydraulic lines and electrical cables.

Automatic Arm Locking:
Models of the FREEDOMLIFT equipped with single and double telescopic arms include automatic arm locking for enhanced convenience and safety during operation.

Extensively Tested and Reliable:
The hydraulic system of the FREEDOMLIFT has minimal moving parts and has undergone testing with over 20,000 lifting and lowering cycles at maximum capacity, ensuring durability and safe operation in the workshop.

• Specifications:

• • Lifting Capacity – 7257 Kg
• • Lifting Height – 80.7 inches
• • Pick-Up Height – 5.9 inches
• • Minimum Single Telescopic Arm Length – N/A
• • Maximum Single Telescopic Arm Length – N/A
• • Minimum Double Telescopic Arm Length – 19.5 inches
• • Maximum Double Telescopic Arm Length – 56.3 inches
• • Lifting Time – 58 seconds
• • Power Output – 5 hp
