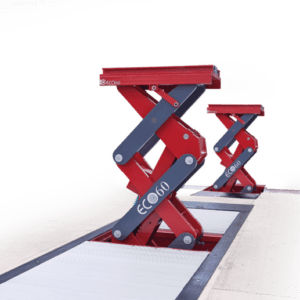

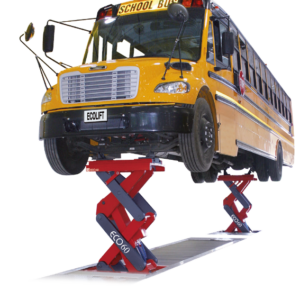

Stertil Koni Ecolift

HEAVY-DUTY IN-GROUND LIFT

• The innovative ebright Smart Control System merges user-friendly design with comprehensive visual data regarding the lifting process. Key benefits include:
•
• • A vibrant 7-inch high-resolution color display
•
• • Touchscreen functionality that remains operable while wearing gloves
•
• • Immediate access to all essential information
•
• • Options that can be tailored by the user, including language selection, safety alerts, and reminders for scheduled maintenance
•
• • A personalized user ID key to ensure secure operation and prevent unauthorized access

Stertil Koni Ecolift

Stertil Koni – In-Ground EcoLift

Innovative Design
The covers operate hydraulically using an inverted rack and pinion mechanism, gliding on a self-cleaning, corrosion-resistant surface. The control system, which is well-established in the industry, features electronic synchronization with real-time feedback to ensure safe and smooth operation. The control system also includes a standard feature to limit the

Maximum Safety
The ECOLIFT incorporates a strong mechanical locking system that functions independently of the hydraulic cylinder. This mechanical lock is engaged throughout the entire lifting range. When the vehicle is lowered into the locks, it is fully supported, eliminating any pressure in the hydraulic system.

Ready for the Future
With its impressive lifting capacity, movable lifting units featuring Continuous Recess™ and a wide variety of adapters, the ECOLIFT is adaptable to a changing fleet of vehicles. Furthermore, the ECOLIFT can be easily relocated as it is designed to be drop-in/bolt-in.

An adapter stand or cart is available for the secure and convenient storage of adapters and cover plates, and it uses biodegradable hydraulic fluid.

Automatic Wheel Base Positioning (AWBP)
The ECOLIFT can be fitted with a system that saves wheelbase information for simpler lift setup. The intuitive touchscreen can store an unlimited number of vehicle configurations, allowing for precise repositioning of the movable lifting units with just a touch, which greatly reduces setup time.

The HOME light beacon signals to the operator when the lifting units are fully lowered, indicating it is safe for vehicles to enter or exit the bay.

Custom lift configurations can be provided.

•

• SPECIFICATIONS:

• • Lifting capacity – 60,000 lbs
• • Lifting height – 70 inches
• • Pit depth – 34 inches
• • Travel Range – 10, 13 & 17 feet
• • Minimum wheelbase – starting at 48 inches
• • Lifting/Lowering time – 80/105 seconds
• • Compressed air supply – Filtered/regulated 5 CFM at 90 PSI
• • Electrical supply – 3 phase, 208 Volt
