Stertil Koni DiamondLift

Piston Lifts for Heavy Duty Vehicle

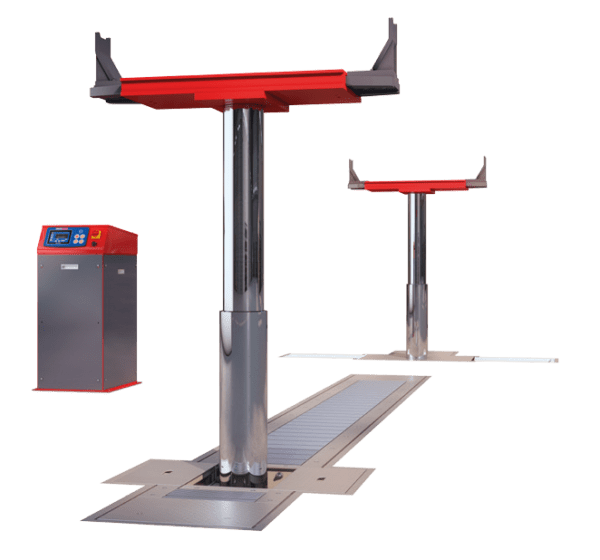

Stertil-Koni provides the DIAMONDLIFT in two different foundation setups. One option is a cassette version that includes steel foundation enclosures, while the other is a frame version that comes with a steel frame intended for a conventional concrete foundation.

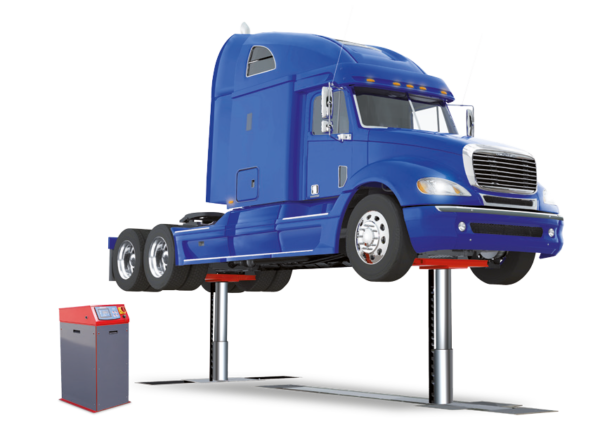

• • Lift setups featuring 2, 3, or 4 pistons for vehicles with multiple axles.
•
• • Offers extensive flexibility in the horizontal movement of the adjustable pistons.
•
• • Frame design: customized ranges made possible by the modular structure of the frame.
•
• • Lifting height of 73 inches to suit the tallest technicians.
•
• • Maximum distance between lifting adapters is 55 inches.

Highly Durable Pistons
The pistons are constructed with hard chrome plating to enhance durability and extend their lifespan. The critical seals of the telescopic pistons are strategically positioned to avoid damage from dirt and debris. The foundation components of DIAMONDLIFT at floor level are hot-dip galvanized to ensure maximum corrosion resistance. Additionally, DIAMONDLIFT cassettes are coated with DiamondGuard®, a premium coating that protects against electrolysis, corrosion, and harmful workshop fluids. The high-pressure hydraulics of DIAMONDLIFT require less than 5 gallons of biodegradable oil per piston, and all hydraulic components are housed in an above-ground control console for easy access.

Ease of Use and Maintenance
All power units and control components are conveniently located in the above-ground console for straightforward troubleshooting and maintenance. There is easy access for manual lowering in case of a power failure, and the pit covers feature continuous hinges with no moving parts. The hydraulic horizontal drive system is designed to be self-aligning and self-cleaning.

Full-color Touchscreen Control
The innovative ebright Smart Control System offers intuitive usability along with comprehensive visual information regarding the lifting process. Key features include:

- A full-color 7-inch high-resolution display

- Touchscreen functionality that operates even when wearing gloves

• Features:

• - The high-resolution 7-inch touchscreen provides real-time lift status data, including:
•
• - Operating mode: single or group
•
• - Current height of all lifting units
•
• - User-defined height restrictions
•
• - Indicators for lifting unit motion
•
• - A gravity-engaged locking system with 3-inch increments and 21 locking positions, starting at a rise of 8 ½ inches (ideal for tire bays)
•
• - Sturdy 3-inch steel locking rods with a hardened, nitrated finish for enhanced wear and corrosion resistance.
•

• SPECIFICATIONS

• - Lifting capacity: 64,000 lbs
•
• - Lifting height: 73 inches
•
• - Pit depth: 69 inches
•
• - Travel range of cassette: 10, 13 & 17 ft.
•
• - Travel range of frame: variable from 10 to 19 ft.
•
• - Minimum wheelbase: starting at 48 inches
•
• - Lifting/Lowering time: 90 seconds each
•
• - Compressed air supply: Filtered/regulated 5 CFM at 60 PSI
•
• - Electrical supply: 3 phase, 208-230/460/575 Volt
•
• - Motor power: 2 x 5
