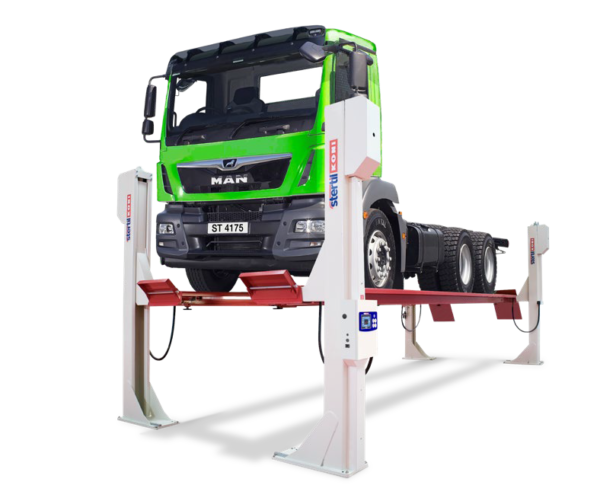

Stertil Koni 4-Post Lifts

4-Post Lifts for Heavy Duty Vehicle

Stertil Koni – 4 POST LIFTS

The Stertil-Koni vehicle lifts are highly adaptable and powerful Ultra 4-Post platform lifts, making them suitable for various workshop environments. Their design prioritizes optimal ergonomics for working under and around vehicles.

Unmatched Safety Features
These lifts feature a safe, independent mechanical locking system that operates on gravity and is always engaged. They include obstruction and automatic overload protection, as well as an electronic synchronization system that continuously checks the position of all cylinders for safe and smooth lifting and lowering. The Stertil-Koni hydraulic system is robust and dependable, equipped with pressure relief and hose burst valves.

User-Friendly Ebright Smart Control System
The patented Stertil-Koni Ebright Smart Control System features an easy-to-use touchscreen designed for secure operation by both owners and users. It provides operational information such as height and lifting cycles, along with preventative maintenance alerts. The Ebright system allows for the simultaneous operation of two lifts in tandem. The control console includes the power and operation unit, ensuring easy access for maintenance and inspection, and is equipped with a manual override for lowering in case of a power failure.

Enhanced Versatility with Tandem Configuration
For servicing very long vehicles, both the ST 4175 and ST 4250 can be configured into a single extended platform lift. This tandem setup can be operated individually or together, making it perfect for articulated buses or other lengthy vehicle combinations.

• SPECIFICATIONS:

• - Lifting capacity: 30,000 kg
  - Lifting system: hydraulic
  - Lifting height: 75 inches
  - Lifting time: 95 seconds
  - Motor: 4 x 3 hp
  - Weight: 5715 kg (29′ – 5 5/16″)
