Paint Booth

Efficient Environmental Edge Pvt Ltd.

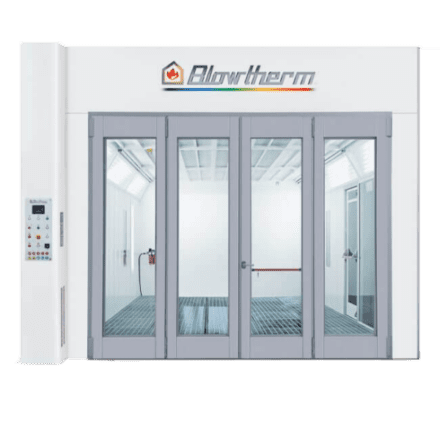

Blowtherm World Special 7000 Paint Booth

The dynamic performance booth for painting specialists

- • Dimensions: 7 meters x 4 meters x 2.755 meters
- • Insulated panels with double skin
- • Vehicle access door with three windows and an anti-panic feature
- • Ceiling filter frames that are painted
- • Superior lighting for bright and consistent illumination
- • Wall panels connected with H channels and insulated with Rock wool
- • Heat exchanger resistant to corrosion, providing four flue paths
- • Centrifugal fan with direct drive
- • Control panel with electro-mechanical components
- • Paint-stop filter trays to ensure even airflow in the booth box

Efficient Environmental Edge Pvt Ltd.

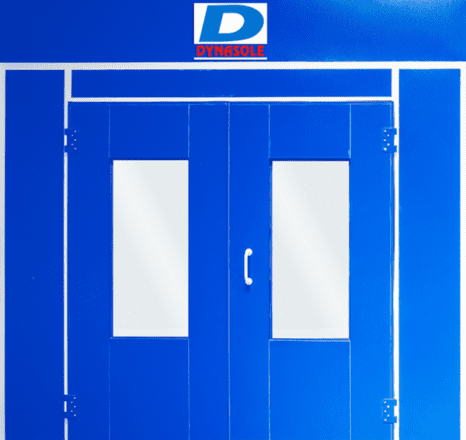

Dynasole Customizable Paint Booth

Passenger Cars 6m or 7m/Bus and Trucks

Dynasole Customizable Paint Booth at-a-glance
- • Vertical downdraft airflow system
- • Service Door Dimensions: Height: 1,900 mm, Width: 620 mm
- • Air Inlet and Exhaust Blowers featuring a Double Inlet Forward Curved Fan for quiet operation
- • Inlet Blower: 24,000 m3/hr, powered by a 10 HP motor, 1440 rpm, 3-phase, 415 V
- • Exhaust Blower: 17,000 m3/hr, powered by a 5 HP motor, 1440 rpm, 3-phase, 415 V
- • Imported non-woven filters
- • Roof-mounted drying units for water-based paints
- • Control panel with five independent controls for various functions
