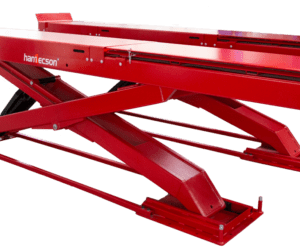

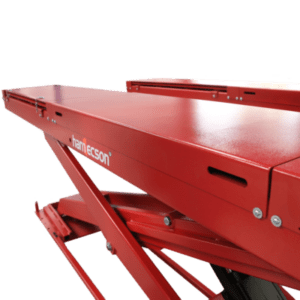

Hanmecson Wheel Alignment Scissor Lift – NBS40A-45

Hanmecson Wheel Alignment Scissor Lift - NBS40A-45

Wheel Alignment Scissor Lift

• Hanmecson – NBS40A-45 at-a-glance
•
• • The inground design allows the platform to be level with the ground, and the adjustable active plates accommodate vehicles with varying wheelbases.
•
• • The built-in limit switch manages high lift positions, ensuring precise axle measurements and safe operation.
•
• • The control console is designed to be user-friendly and intuitive.
•
• • The platform extensions are easily adjustable to fit a variety of vehicle lengths.
•
• • An upper limit feature prevents the cylinder from becoming stuck and minimizes vehicle movement.
•
• • A lower limit feature helps safeguard technicians from potential injuries.

• Features:

• • Configurable to meet various needs;
•
• • Sophisticated Master-Slave hydraulic system;
•
• • Manual operation available for lowering during power outages;
•
• • Upper and lower limits enhance operational safety;
•
• • Open front and rear design without structural connections between platforms or bases expands the workspace for technicians;
•
• • Cutting-edge electron-hydraulic control technology simplifies operation and maintenance;
•
• • Durable, high-quality composite bearings ensure maintenance-free functionality.
•

• SPECIFICATIONS

• Load Capacity – 4000 kg
• Maximum Lifting Height – 1920 mm
• Minimum Lowered Height – 345 mm
• Total Length – 4989 mm
• Total Width – 2206 mm
• Runway Length – 4500 mm
• Runway Width – 625 mm
• Motor Power – 3 kW
• Electrical Supply – 3PH 380V 50 Hz
• Air Pressure Range – 6-8 bar
