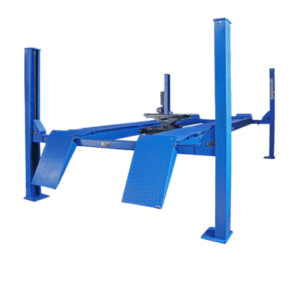

Hanmecson HF9000

Four Post Wheel Alignment Lift

Hanmecson HF9000 at-a-glance

• • Establish an excellent setup for 4-wheel alignment, maintenance, inspection, and electro-hydraulic operation.
•
• • Runway widths of 508mm.
•
• • The HF9000A model comes with the AK4T bolt-on alignment kit (radius gauges are not part of the package).
•
• • The safety lock is reliable and secure, positioned at an appropriate height.
•
• • Shown with an optional rolling jack (ProJack 4500A).
•
• • Optional: air pump for the rolling jack (ProJack-Kit).

Hanmecson HF9000

• Hanmecson HF9000 – Four Post Wheel Alignment Lift
• • The hydraulic system features a flow restriction valve that enhances safety in case of a hose failure.
•
• • The runway height can be adjusted to accommodate the requirements for high 4-wheel alignment.
•
• • It combines inspection, maintenance, and 4-wheel alignment functions, all while maintaining an attractive design.
•
• • The safety lock is positioned at an appropriate height for operation, ensuring safety and reliability.
•
• • The lift operates using a hydraulic and cable system, creating a quiet working environment.
•
• • A safety lock is included to protect against cable damage.
•
• • The 4-wheel alignment kit is available with an optional rolling jack.
•

• TECHNICAL SPECIFICATIONS

Lifting Capacity: 4082 kg (9000 lbs.)
Overall Length (including ramp): 5337 mm
Overall Width (including motor): 3276 mm
Runway Width: 508 mm
Runway Length: 4500 mm
Width Between Runways: 1000 mm
Drive-Thru Clearance: 2330 mm
Motor: 2.2 kW
Power: 3 Phase, 380V, 50Hz
