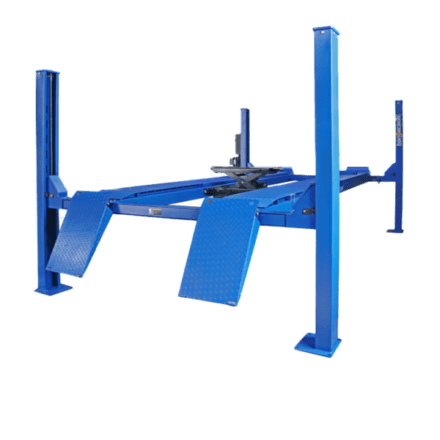

Hanmecson HF9000
Four Post Wheel Alignment Lift
- Hanmecson HF9000 at-a-glance
- • Establish an excellent setup for 4-wheel alignment, maintenance, inspection, and electro-hydraulic operation.
- • Runway widths of 508mm.
- • The HF9000A model comes with the AK4T bolt-on alignment kit (radius gauges are not part of the package).
- • The safety lock is reliable and secure, positioned at an appropriate height.
- • Shown with an optional rolling jack (ProJack 4500A).
- • Optional: air pump for the rolling jack (ProJack-Kit).

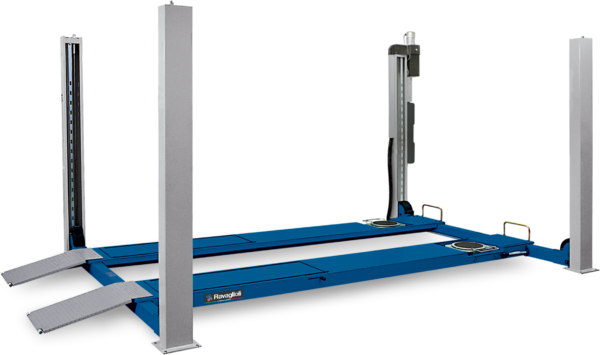

RAV 4402
Four Post Wheel Alignment Lift
- RAV 4402 at-a-glance
-
- • The hydraulic cylinder is housed within the fixed platform, ensuring optimal protection.
• Durable, galvanized, and pre-stretched metal cables.
• Large pulleys featuring self-lubricating and maintenance-free bushings.
• The platform is adjustable to fit various vehicle tracks and enhance access to the vehicle’s underbody.
• Automatic mechanical backup safety devices are installed every 100mm, equipped with pneumatic release for stationary operation with unloaded cables.
• Safety stud devices activate immediately if a cable becomes loose or fails.
• An automatic anti-toe trap alarm is triggered during the final stages of the lift’s descent.
• Mechanical, electrical, and hydraulic safety features meet the current standards for CE certification.
• A low-voltage (24V) electrical system with a control circuit, including provisions for front turn plates and integrated rear slip plates.
